#include <cbmflataggregatorlandunitdata.h>

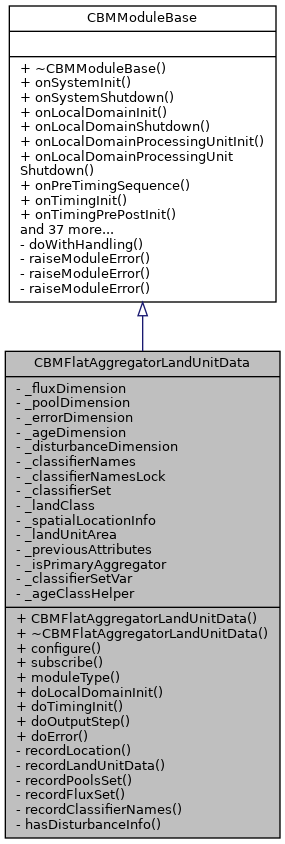

Inheritance diagram for CBMFlatAggregatorLandUnitData:

Collaboration diagram for CBMFlatAggregatorLandUnitData:

Public Member Functions
	CBMFlatAggregatorLandUnitData (std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatFluxRecord >> fluxDimension, std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatPoolRecord >> poolDimension, std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatErrorRecord >> errorDimension, std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatAgeAreaRecord >> ageDimension, std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatDisturbanceRecord >> disturbanceDimension, std::shared_ptr< std::vector< std::string >> classifierNames, std::shared_ptr< Poco::Mutex > classifierNamesLock)

virtual	~CBMFlatAggregatorLandUnitData ()=default

void	configure (const DynamicObject &config) override

void	subscribe (NotificationCenter &notificationCenter) override

flint::ModuleTypes	moduleType () override

void	doLocalDomainInit () override

void	doTimingInit () override

void	doOutputStep () override

void	doError (std::string msg) override

Public Member Functions inherited from CBMModuleBase
virtual	~CBMModuleBase ()=default

void	onSystemInit () override

void	onSystemShutdown () override

void	onLocalDomainInit () override

void	onLocalDomainShutdown () override

void	onLocalDomainProcessingUnitInit () override

void	onLocalDomainProcessingUnitShutdown () override

void	onPreTimingSequence () override

void	onTimingInit () override

void	onTimingPrePostInit () override

void	onTimingPostInit () override

void	onTimingPostInit2 () override

void	onTimingShutdown () override

void	onTimingStep () override

void	onTimingPreEndStep () override

void	onTimingEndStep () override

void	onTimingPostStep () override

void	onOutputStep () override

void	onPrePostDisturbanceEvent () override

void	onPostDisturbanceEvent () override

void	onPostDisturbanceEvent2 () override

void	onError (std::string msg) override

void	onDisturbanceEvent (DynamicVar e) override

void	onPostNotification (short preMessageSignal) override

virtual void	doSystemInit ()

virtual void	doSystemShutdown ()

virtual void	doLocalDomainShutdown ()

virtual void	doLocalDomainProcessingUnitInit ()

virtual void	doLocalDomainProcessingUnitShutdown ()

virtual void	doPreTimingSequence ()

virtual void	doTimingPrePostInit ()

virtual void	doTimingPostInit ()

virtual void	doTimingPostInit2 ()

virtual void	doTimingShutdown ()

virtual void	doTimingStep ()

virtual void	doTimingPreEndStep ()

virtual void	doTimingEndStep ()

virtual void	doTimingPostStep ()

virtual void	doDisturbanceEvent (DynamicVar)

virtual void	doPrePostDisturbanceEvent ()

virtual void	doPostDisturbanceEvent ()

virtual void	doPostDisturbanceEvent2 ()

virtual void	doPostNotification (short preMessageSignal)

Private Member Functions
FlatAgeAreaRecord	recordLocation (bool isSpinup)

void	recordLandUnitData (bool isSpinup)

void	recordPoolsSet (const FlatAgeAreaRecord &location)

void	recordFluxSet (const FlatAgeAreaRecord &location)

void	recordClassifierNames (const DynamicObject &classifierSet)

bool	hasDisturbanceInfo (std::shared_ptr< flint::IOperationResult > flux)

Private Attributes
std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatFluxRecord > >	_fluxDimension

std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatPoolRecord > >	_poolDimension

std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatErrorRecord > >	_errorDimension

std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatAgeAreaRecord > >	_ageDimension

std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatDisturbanceRecord > >	_disturbanceDimension

std::shared_ptr< std::vector< std::string > >	_classifierNames

std::shared_ptr< Poco::Mutex >	_classifierNamesLock

flint::IVariable *	_classifierSet

flint::IVariable *	_landClass

std::shared_ptr< const flint::SpatialLocationInfo >	_spatialLocationInfo

double	_landUnitArea

std::optional< FlatAgeAreaRecord >	_previousAttributes

bool	_isPrimaryAggregator

std::string	_classifierSetVar

AgeClassHelper	_ageClassHelper

Constructor & Destructor Documentation

◆ CBMFlatAggregatorLandUnitData()

CBMFlatAggregatorLandUnitData	(	std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatFluxRecord >>	fluxDimension,
		std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatPoolRecord >>	poolDimension,
		std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatErrorRecord >>	errorDimension,
		std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatAgeAreaRecord >>	ageDimension,
		std::shared_ptr< flint::RecordAccumulatorWithMutex2< std::string, FlatDisturbanceRecord >>	disturbanceDimension,
		std::shared_ptr< std::vector< std::string >>	classifierNames,
		std::shared_ptr< Poco::Mutex >	classifierNamesLock
	)

◆ ~CBMFlatAggregatorLandUnitData()

virtual ~CBMFlatAggregatorLandUnitData ( )

virtualdefault

Member Function Documentation

◆ configure()

void configure ( const DynamicObject & config )

override

Configuration function

Assign CBMFlatAggregatorLandUnitData._classifierSetVar as value of variable "reporting_classifier_set" in parameter config if it exists,
else to string "classifier_set"

Parameters

config DynamicObject&

Returns: void

◆ doError()

void doError ( std::string msg )

overridevirtual

If CBMFlatAggregatorLandUnitData._spatialLocationInfo is not nullptr, then instantiate an object of FlatErrorRecord with the year, classifier
of the current location using CBMFlatAggregatorLandUnitData.recordLocation(), value of property "module" in CBMFlatAggregatorLandUnitData._spatialLocationInfo
else use the 0 and null string for the parameter 1 and 2
Invoke accumulate() on CBMFlatAggregatorLandUnitData._errorDimension with argument object

Parameters

msg string

Returns: void

Reimplemented from CBMModuleBase.

◆ doLocalDomainInit()

void doLocalDomainInit ( )

overridevirtual

Assign CBMFlatAggregatorLandUnitData._spatialLocationInfo, CBMFlatAggregatorLandUnitData._landClass values of variables "spatialLocationInfo" and "unfccc_land_class", CBMFlatAggregatorLandUnitData._classifierSet value of CBMFlatAggregatorLandUnitData._classifierSet in _landUnitData
If _landUnitData contains variables "age_class_range" and "age_maximum", create an object of AgeClassHelper,
assign it to CBMFlatAggregatorLandUnitData._ageClassHelper

Returns: void

Reimplemented from CBMModuleBase.

◆ doOutputStep()

void doOutputStep ( )

overridevirtual

Invoke CBMFlatAggregatorLandUnitData.recordLandUnitData() with argument as boolean false

Returns: void

Reimplemented from CBMModuleBase.

◆ doTimingInit()

void doTimingInit ( )

overridevirtual

Assign CBMFlatAggregatorLandUnitData._landUnitArea value of property "landUnitArea" in CBMFlatAggregatorLandUnitData._spatialLocationInfo
Invoke CBMFlatAggregatorLandUnitData.recordLandUnitData() using a true boolean argument

Returns: void

Reimplemented from CBMModuleBase.

◆ hasDisturbanceInfo()

bool hasDisturbanceInfo ( std::shared_ptr< flint::IOperationResult > flux )

private

If hasDataPackage() on parameter flux is false return false
Extract DynamicObject from flux->dataPackage(), if it contains both "disturbance" and "disturbance_type_code", return true, else return false

Parameters

flux	shared_ptr<IoperationResult>

Returns: bool

◆ moduleType()

flint::ModuleTypes moduleType ( )

override

◆ recordClassifierNames()

void recordClassifierNames ( const DynamicObject & classifierSet )

private

Add each classifier in parameter classifierSet to CBMFlatAggregatorLandUnitData._classifierNames,
if CBMFlatAggregatorLandUnitData._classifierNames is not empty

Parameters

classifierSet DynamicObject&

Returns: void

◆ recordFluxSet()

void recordFluxSet ( const FlatAgeAreaRecord & location )

private

If getOperationLastAppliedIterator() on _landUnitData is not empty,
for each operationResult in _landUnitData->getOperationLastAppliedIterator(), instantiate an object of FlatDisturbanceRecord and invoke accumulate() on CBMFlatAggregatorLandUnitData._disturbanceDimension with argument object
For each operation in operationResult, if the source and destination pools are not the same, instantiate an object of FlatFluxRecord and invoke accumulate() on CBMFlatAggregatorLandUnitData._fluxDimension with the argument object
Invoke clearLastAppliedOperationResults() on _landUnitData

Parameters

location FlatAgeAreaRecord

Returns: void

◆ recordLandUnitData()

void recordLandUnitData ( bool isSpinup )

private

If parameter isSpinup is true, assign CBMFlatAggregatorLandUnitData._previousAttributes the result of the function CBMFlatAggregatorLandUnitData.recordLocation()
Invoke CBMFlatAggregatorLandUnitData.recordPoolsSet() and CBMFlatAggregatorLandUnitData.recordFluxSet() by using isSpinUp as the parameter
Assign CBMFlatAggregatorLandUnitData._previousAttributes the result of the function CBMFlatAggregatorLandUnitData.recordLocation()

Parameters

isSpinup bool

Returns: void

◆ recordLocation()

FlatAgeAreaRecord recordLocation ( bool isSpinup )

private

If parameter isSpinup is false, get the current year of the simulation from _landUnitData
If CBMAggregatorLandUnitData._classifierNames is empty, invoke CBMAggregatorLandUnitData.recordClassifierNames()
For each classifier in CBMAggregatorLandUnitData._classifierSet, append classifier.second to a variable classifierSet
Instantiate an object of FlatAgeAreaRecord with year, classifierSet, value of CBMFlatAggregatorLandUnitData._landClass, value of variable "age_class" in _landUnitData if it exists else "", _landUnitArea, invoke accumulate() on CBMFlatAggregatorLandUnitData._ageDimension with argument object and return the object

Parameters

isSpinup bool

Returns: Int64

◆ recordPoolsSet()

void recordPoolsSet ( const FlatAgeAreaRecord & location )

private

For each pool in poolCollection() of _landUnitData, calculate the poolValue as value of pool * _landUnitArea
If poolValue is not 0, instantiate an object of FlatPoolRecord and call accumulate on CBMFlatAggregatorLandUnitData._poolDimension with argument object

Parameters

location FlatAgeAreaRecord&

Returns: void

◆ subscribe()

void subscribe ( NotificationCenter & notificationCenter )

override

Subscribe to the signals LocalDomainInit, TimingInit, OutputStep and Error

Parameters

notificationCenter NotificationCenter&

Returns: void

Member Data Documentation

◆ _ageClassHelper

AgeClassHelper _ageClassHelper

private

◆ _ageDimension

std::shared_ptr<flint::RecordAccumulatorWithMutex2<std::string, FlatAgeAreaRecord> > _ageDimension

private

◆ _classifierNames

std::shared_ptr<std::vector<std::string> > _classifierNames

private

◆ _classifierNamesLock

std::shared_ptr<Poco::Mutex> _classifierNamesLock

private

◆ _classifierSet

flint::IVariable* _classifierSet

private

◆ _classifierSetVar

std::string _classifierSetVar

private

◆ _disturbanceDimension

std::shared_ptr<flint::RecordAccumulatorWithMutex2<std::string, FlatDisturbanceRecord> > _disturbanceDimension

private

◆ _errorDimension

std::shared_ptr<flint::RecordAccumulatorWithMutex2<std::string, FlatErrorRecord> > _errorDimension

private

◆ _fluxDimension

std::shared_ptr<flint::RecordAccumulatorWithMutex2<std::string, FlatFluxRecord> > _fluxDimension

private

◆ _isPrimaryAggregator

bool _isPrimaryAggregator

private

◆ _landClass

flint::IVariable* _landClass

private

◆ _landUnitArea

double _landUnitArea

private

◆ _poolDimension

std::shared_ptr<flint::RecordAccumulatorWithMutex2<std::string, FlatPoolRecord> > _poolDimension

private

◆ _previousAttributes

std::optional<FlatAgeAreaRecord> _previousAttributes

private

◆ _spatialLocationInfo

std::shared_ptr<const flint::SpatialLocationInfo> _spatialLocationInfo

private

The documentation for this class was generated from the following files:

/home/runner/work/moja.canada/moja.canada/Source/moja.modules.cbm/include/moja/modules/cbm/cbmflataggregatorlandunitdata.h
/home/runner/work/moja.canada/moja.canada/Source/moja.modules.cbm/src/cbmflataggregatorlandunitdata.cpp
